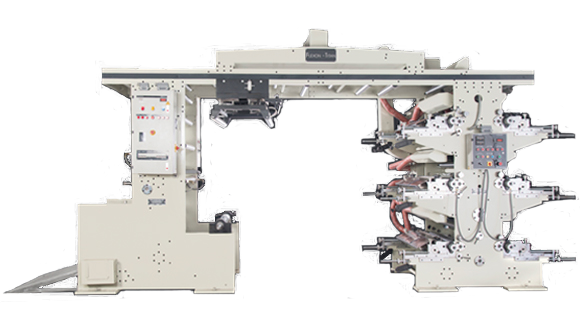

Flexon 6 Color Flexo Printing Press For Printing On Woven Sack

Salient Features

  • Max Printing Speed 80 mtrs / min.
  • Excellent Printing.
  • Inching Facility.
  • Auto Stop.
  • Temperature Controller.
  • Unique Drying System: Re-circulation of hot air which provides for expelling calculated quantity of air, to control solvent level And yet achieve faster drying coupled with tremendous saving of energy.
  • Surface Winder.
  • Web Aligner.

Optional

  • Ceramic Anilox Rollers.
  • Enclosed Doctor Blade Chamber.
  • Ink Circulation System.

  • Continuous Rotation of Anilox Rollers when the press is stopped.
  • Auto Tension Controls system(4 Drive System).

Technical Specifications

Color 4 Color 6 Color 8 Color
Web Width 810 MM 810 MM 810 MM
Print Width 760 MM 760 MM 760 MM
Print Repeat 240 MM - 1000 MM (8 inch - 40 inch) 240 MM - 1000 MM (8 inch - 40 inch) 240 MM - 1000 MM (8 inch - 40 inch)
Print Speed 65 Mtr.s/minute Maximum 65 Mtr.s/minute Maximum 65 Mtr.s/minute Maximum
Power Management Main Motor 3 hp ac Main Motor 3 hp ac Main Motor 5 hp ac
Blowers 2 hp ac + 0.5 hp ac Blowers 3 hp ac + 0.5 hp ac Blowers 5 hp ac + 0.5 hp ac
Web Aligner 0.5 hp ac Web Aligner 0.5 hp ac Web Aligner 0.5 hp ac
Heating Load 12 kw Heating Load 13.2 kw Heating Load 14.4 kw
